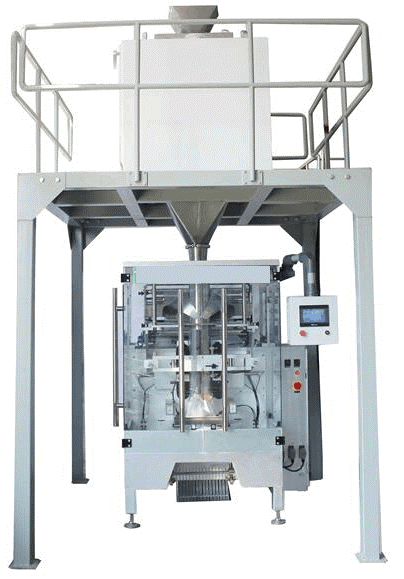

立式全自動多頭組合包裝機 Vertical automatic multi head combination packaging machine
1、該機組集計量、制袋、充填、封口、打印、沖孔、記數于一體。
2、進口PLC全電腦控制系統,多國語言觸摸屏操作系統,清楚顯示工作狀態及操作指令。
3、采用高精度伺服真空運膜系統,運膜平穩,皮帶損耗極低,配合光電自動定位跟蹤系統,定位精度高、
4、橫封封口采用伺服封合,封口控制穩定、平整、美觀、耗氣量低。
5、智能型數字式溫控系統,溫差控制穩定,配合齒形封口器,確保封口牢固。
6、含自動故障報警顯示功能,如溫度偏低、無包裝膜、無色帶、無物料、伺服故障、無色標信號、玻璃防護門未關閉等情況時,即自動報警或停機。
適用范圍:
適合要求稱重計量精度高及易碎的散狀物體的包裝,如:種子、炒貨、雜糧、膨化食品、鍋巴、果凍、糖果、開心果、蘋果片、水餃、湯圓、朱古力、寵物食品、調味品、藥材、小五金件等各類塊狀、條狀、粉狀物料的自動包裝。
稱量機構選配:
稱量部分可選配以下電子秤:二頭、四頭、六頭線性秤;十頭電子組合秤、十四頭電子組合秤。
技術參數
型號 | LCS-680 |
包裝速度
| 35-45bags/min |
計量范圍 | 0.5-5kg |
稱量精度 | ±0.2%g |
制袋尺寸 | L50mm-460mm*W80mm-350mm |
最大膜寬 | 680mm |
卷材紙芯內徑 | Φ75 mm |
包材最大外徑 | Φ400 mm |
包裝膜材質 | POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET |
圈膜厚度 | 0.04-0.10mm |
制袋形式 | 立式袋、枕式袋、打孔裝置、連包裝置 |
耗氣量 | 0.4m3/min 0.6Pa |
功率 | 5.0kW 380V 50/60HZ |
外形尺寸 | 2500mm*2500 mm *4200 mm |
設備重量 | 1500kg |
1. The machine set includes measuring, bag making, filling, sealing, printing, punching and counting.
2. Imported PLC full computer control system, multi language touch screen operating system, clearly show the working status and operation instructions.
3. It adopts high-precision servo vacuum film transport system, which is stable in film transport and extremely low in belt loss. With the photoelectric automatic positioning and tracking system, it has high positioning accuracy
4. The horizontal sealing adopts servo sealing, and the sealing control is stable, flat, beautiful and low gas consumption.
5. Intelligent digital temperature control system, stable temperature difference control, with tooth shaped sealer, to ensure that the seal is firm.
6. Including automatic fault alarm display function, such as low temperature, no packaging film, no color band, no material, servo fault, no color code signal, glass protective door is not closed, etc., which means automatic alarm or shutdown.
Scope of application
It is suitable for the packaging of bulk objects with high weighing accuracy and fragile, such as seeds, fried goods, miscellaneous grains, expanded food, Guoba, jelly, candy, pistachio, apple slices, dumplings, Tangyuan, chocolate, pet food, condiment, medicinal materials, hardware and other kinds of block, strip and powder materials.
Selection of weighing mechanism
The weighing part can be equipped with the following electronic scales: two, four, six linear scales; ten electronic combined scales, fourteen electronic combined scales.
Technical data
Model | LCS-680 |
Packing speed
| 35-45bags/min |
Measurement range | 0.5-5kg |
Quantify precision | ±0.2%g |
Bag Size | L50mm-460mm*W80mm-350mm |
Maximum membrane width | 680mm |
Inner diameter of coil paper core | Φ75 mm |
Maximum outer diameter of packing material | Φ400 mm |
Packaging film material | POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET |
Film thickness | 0.04-0.10mm |
Sealing method | Vertical bag, pillow bag, drilling device and continuous bag device |
Gas consumption | 0.4m3/min 0.6Pa |
power | 5.0kW 380V 50/60HZ |
Boundary dimension | 2500mm*2500 mm *4200 mm |
Equipment weight | 1500kg |
